| Roof Specification | |
|---|---|
| Total Coated Thickness (mm) | 0.35 / 0.45 / 0.50 / 0.60 |
| Sheet Length* (mm) | 2440(8f), 3050(10ft), 3660(12ft), 4270(14ft), 4880(16ft) |
| Effective Cover Width(mm) | Nominal 1015 |
| Overall Width(mm) | Nominal 1072 |
| Minimum Roof slope(degrees) | 3 |
| Wall Specification | |
|---|---|
| Total Coated Thickness (mm) | 0.35 / 0.45 / 0.50 / 0.60 |
| Sheet Length* (mm) | 2440(8f), 3050(10ft), 3660(12ft), 4270(14ft) |
| Effective Cover Width(mm) | Nominal 1110 |
| Overall Width(mm) | Nominal 1150 |
| Maximum Support Spacing (mm)* | ||
|---|---|---|
| Type Of Span | Roof | Wall |
| Single Span | 950 | 1700 |
| End Span | 1200 | 2450 |
| Internal Span | 1750 | 2850 |
*Terms & Conditions Applicable
Anti-Capillary Groove : Anti-capillary grooves ensure leak-proof performance
Wider Valleys : Wider Valleys ensure higher water discharge during heavy rains
| Maximum Support Spacing (mm)* | |
|---|---|
| Type Of Span | Roof |
| Single Span | 1150 |
| End Span | 1500 |
| Internal Span | 1650 |
*Terms & Conditions Applicable
Widest Profile : DURASHINE wall is one of the widest wall profile sheets available, which also quick and easy to install
Benefits of Durashine Roof & Wall
| Long Lasting | High Strength (550MPA) | Better Thermal Efficiency |
|---|---|---|
| Zinc-Aluminum alloy coating provides excellent corrosion resistance compared to galvanized steel | Manufactured from high strength raw materials | Durashine profiles have high heat reflectivity thereby making it an energy efficient solution |
| Its super paint system gives longer product life over pre-painted galvanized steel | Saves Overall cost of supporting structures. light weight makes it easy to handle | It maintains inside temperature as compared to galvanized sheets, asbestors sheets, concrete slab and clay tiles |
| The profile last 2-4 times longer than ordinary colour coated sheet | Longer span and wider spreads ensure freedom in design |
*Disclamer :
Condensation is the natural formation of water droplets on the bottom side of any installed metal roofing sheet. It may occur whenthere is a difference in temperature between the air in the building and the sheet itself, causing the water vapour(moisture) in the air to consense on the sheet. it is a natural phenomenon and hence no claims will be entertained in this regard.
The risk of condensation may be minimised by providing proper ventilation arrangement in the roofs and by using suitable insulation.
Available Standard Colours*
*Disclamer :
1) The Above Colours are only for illustrative purpose and actual colours may vary.
2) All The above colour names are trademarks under DURASHINE brand.

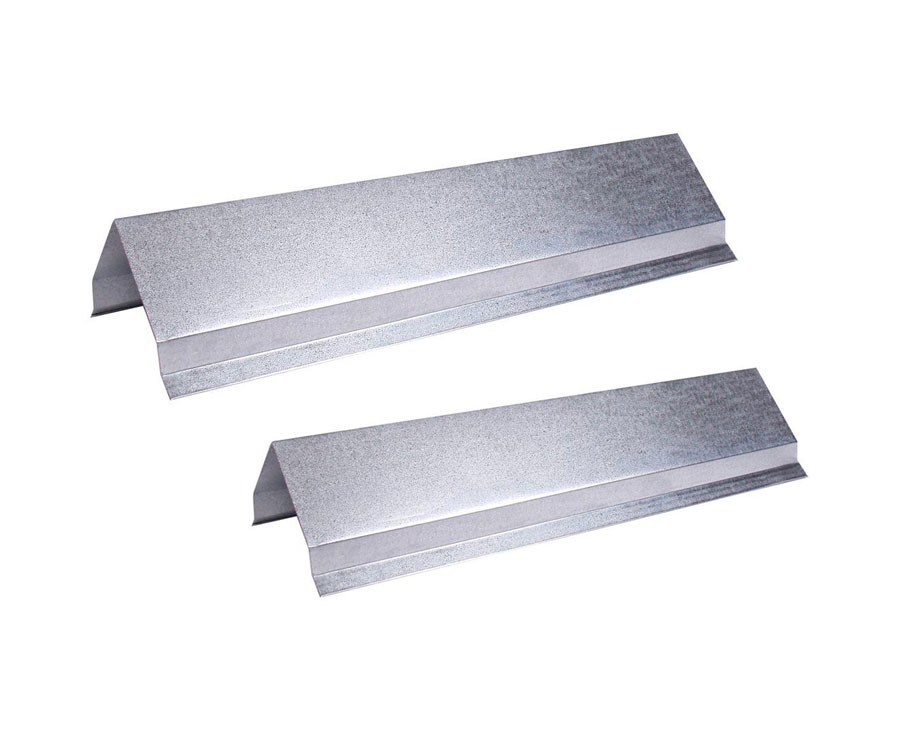

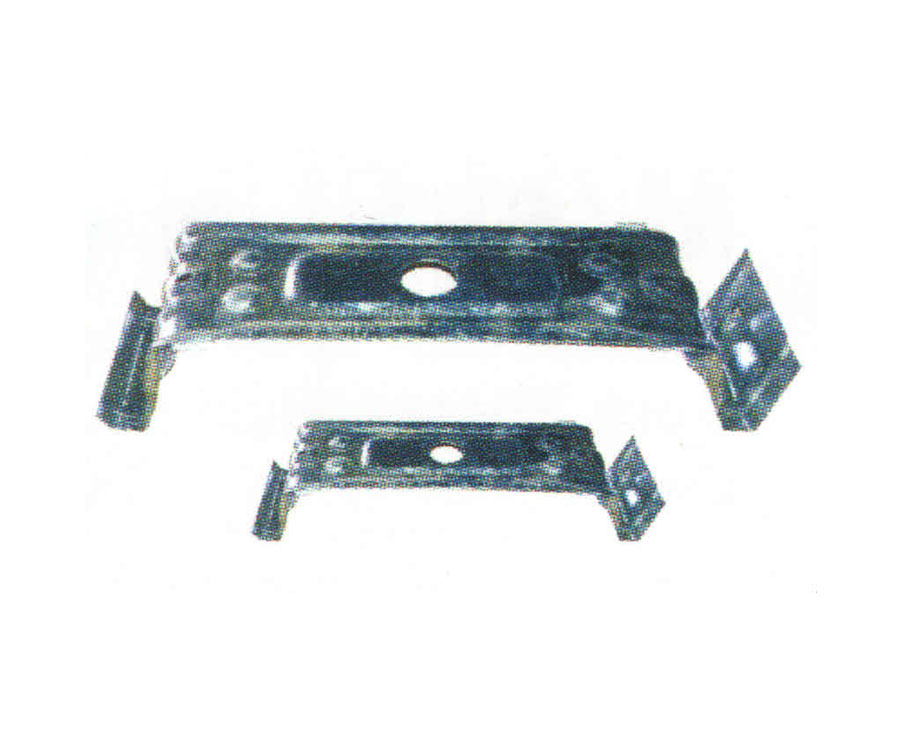

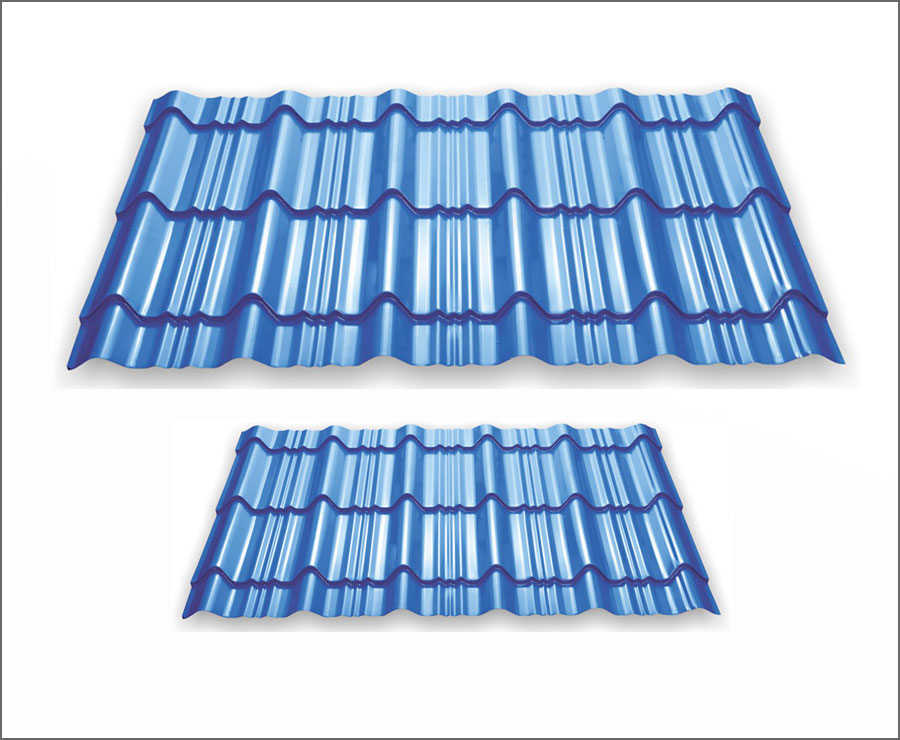

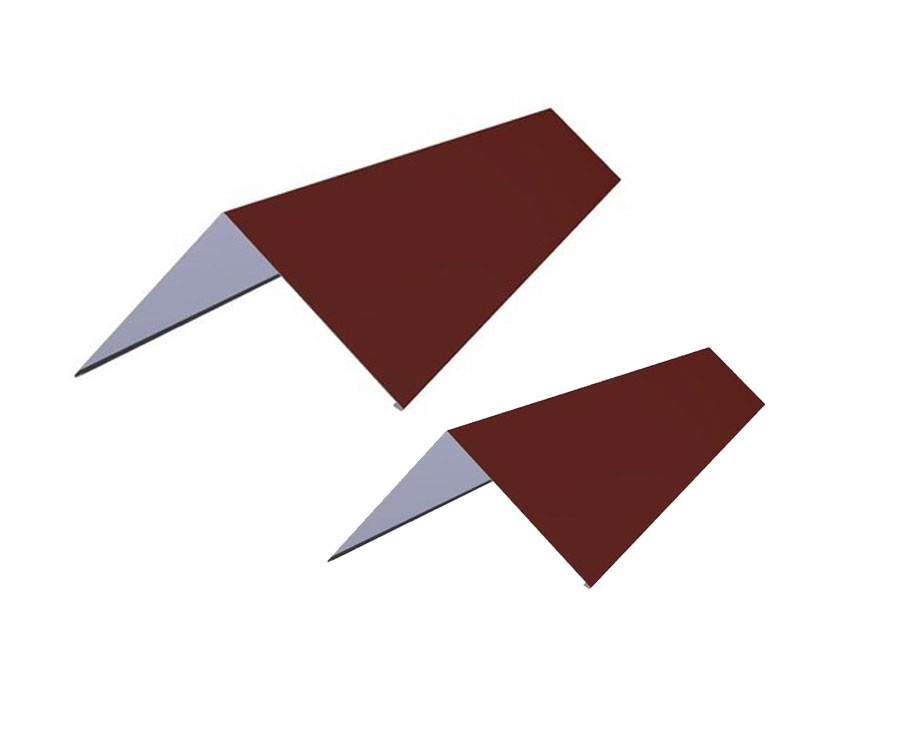

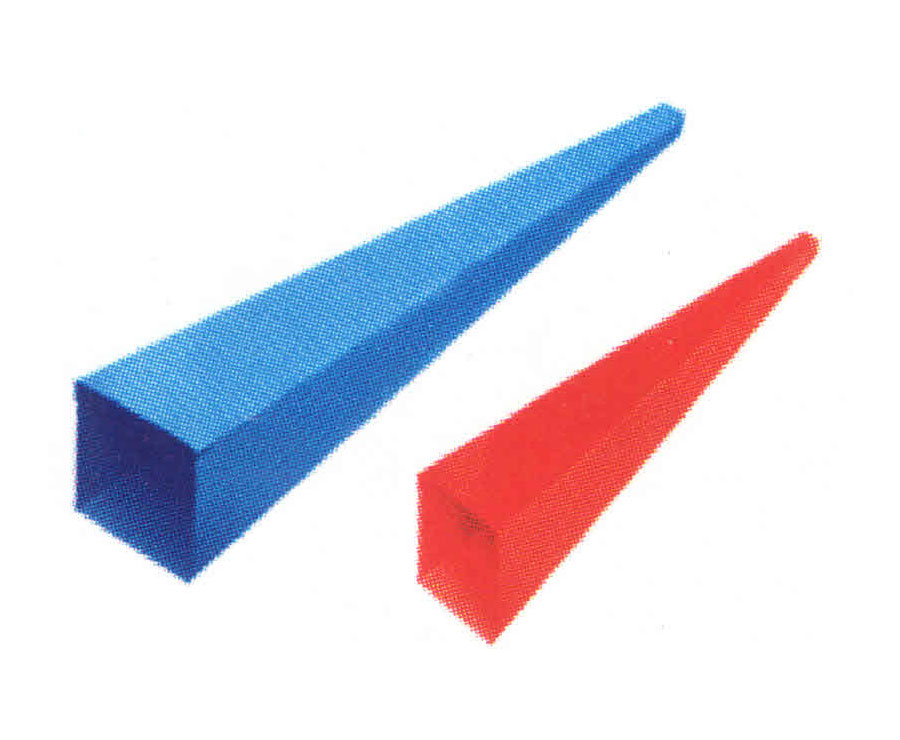

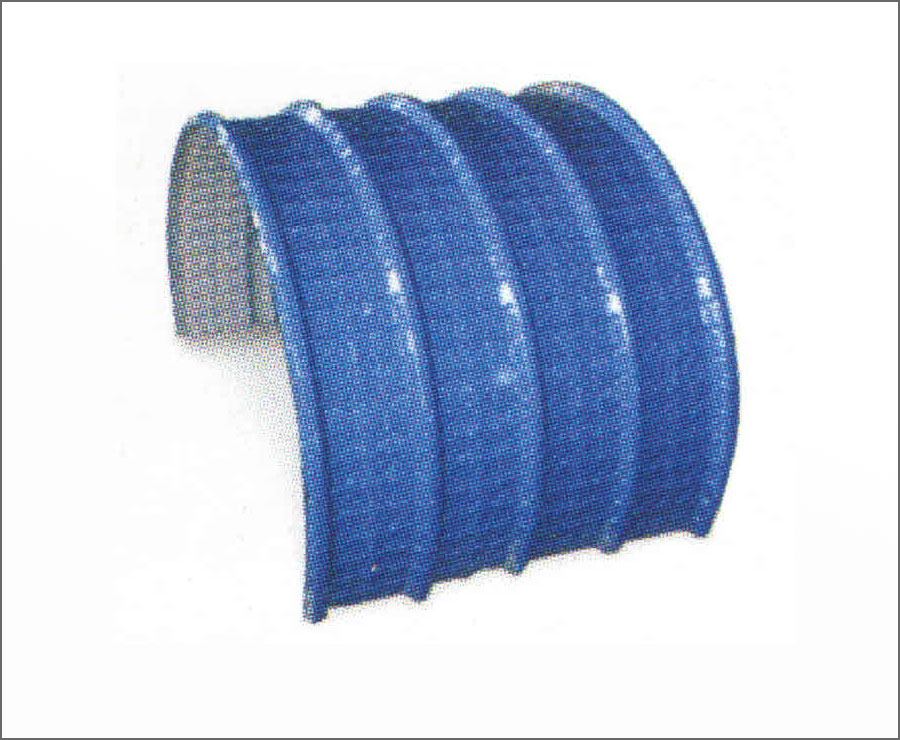

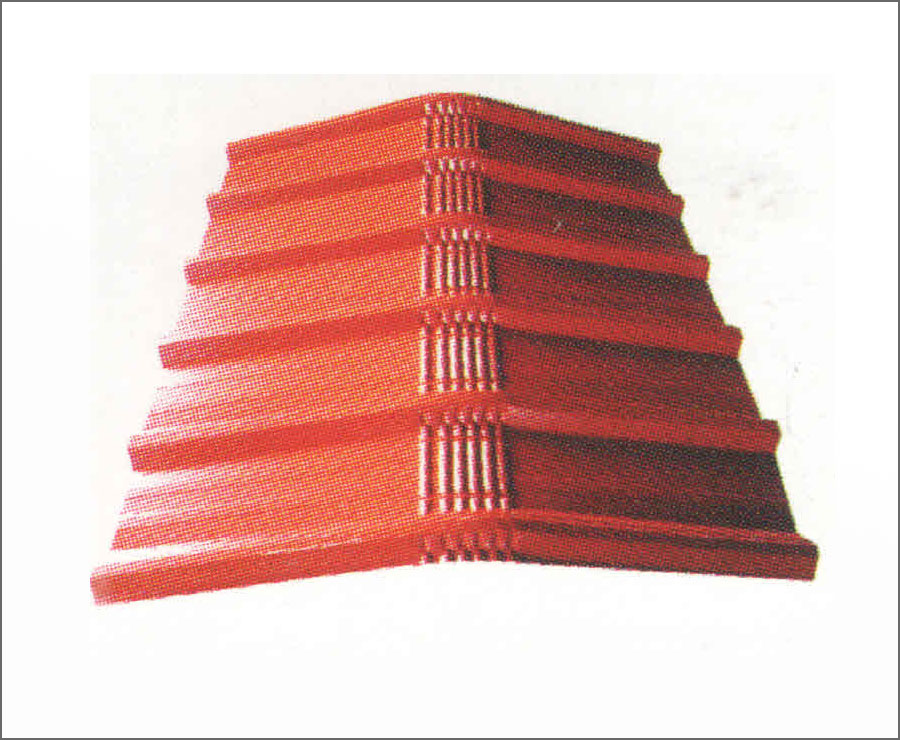

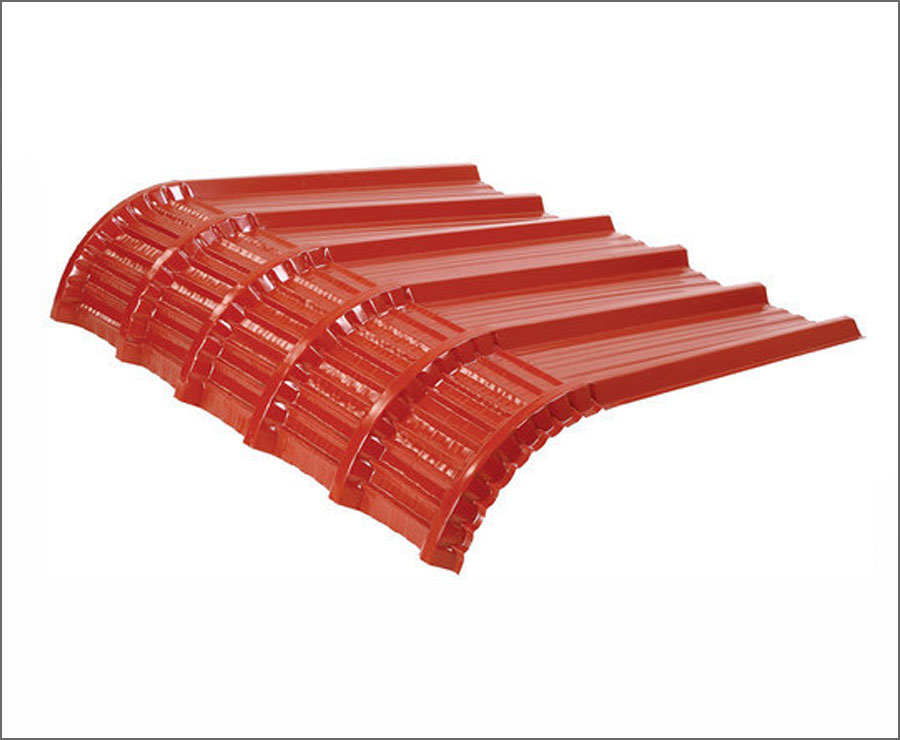

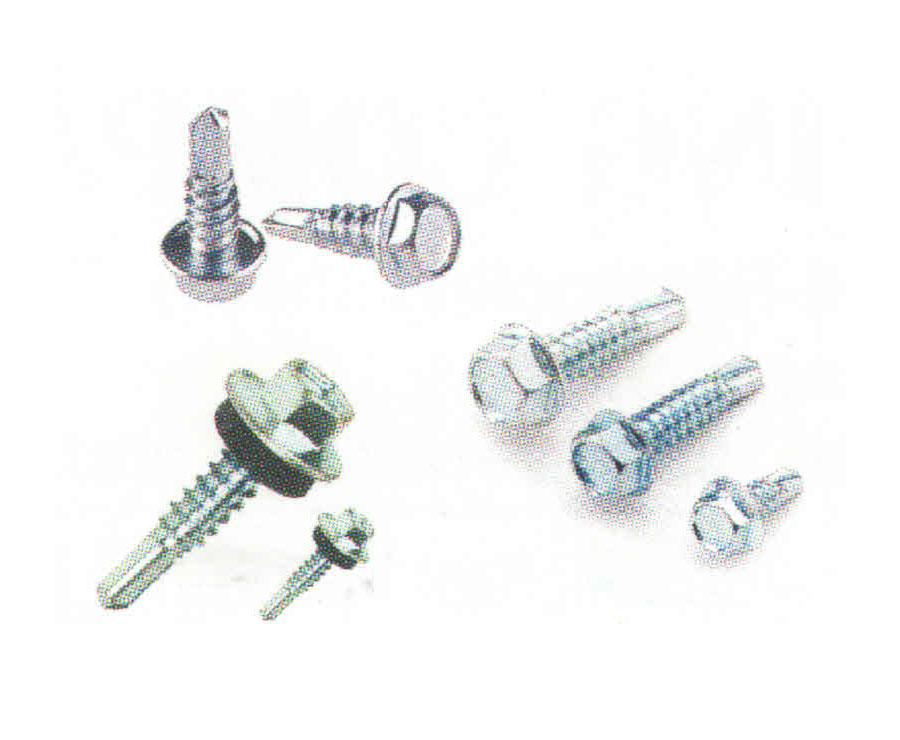

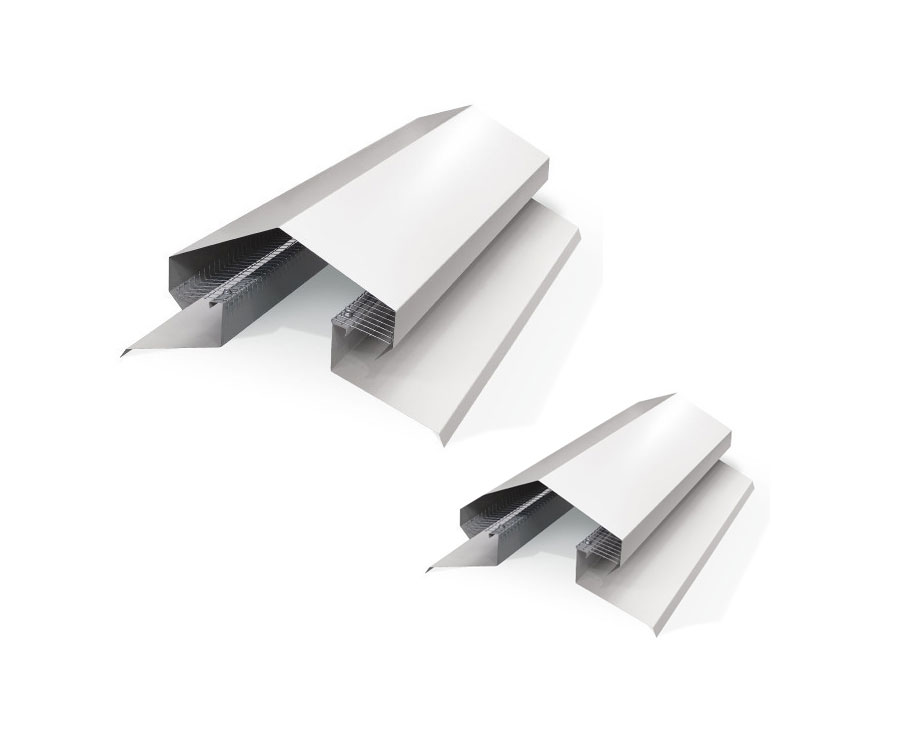

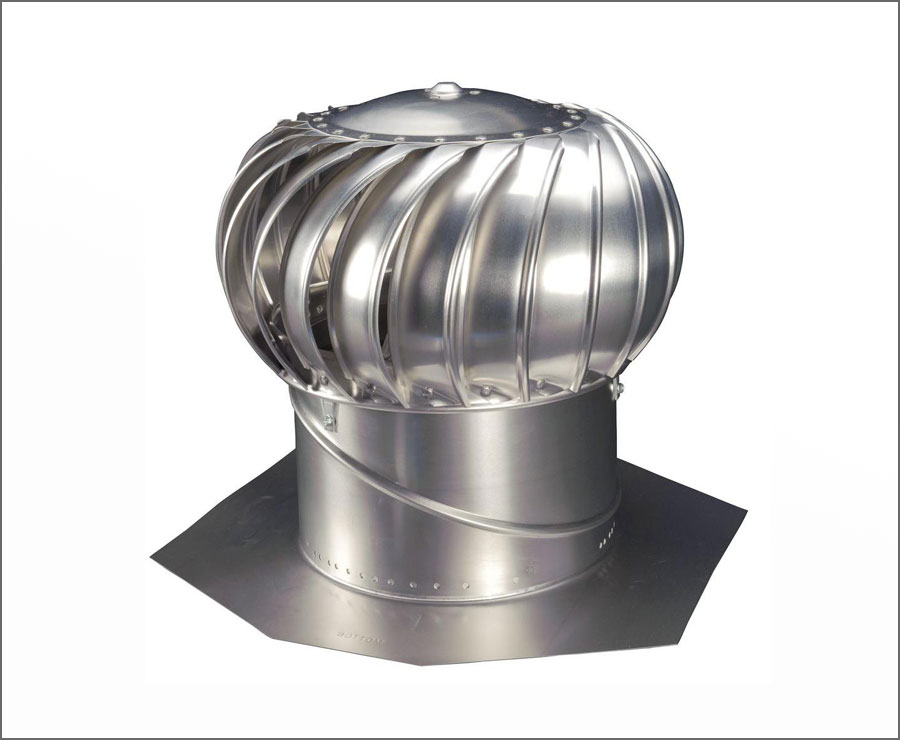

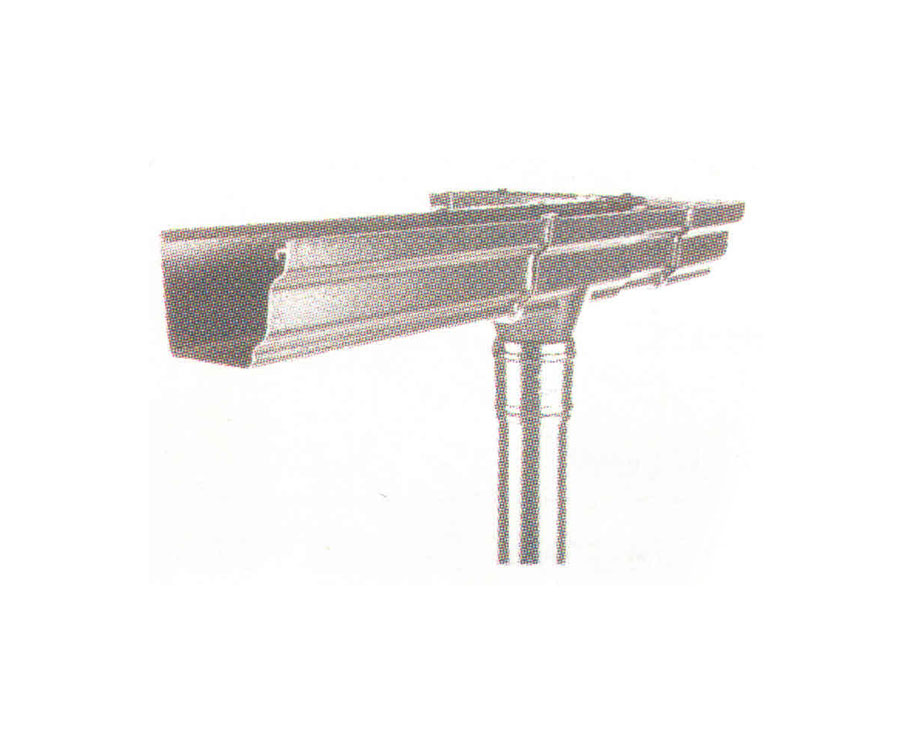

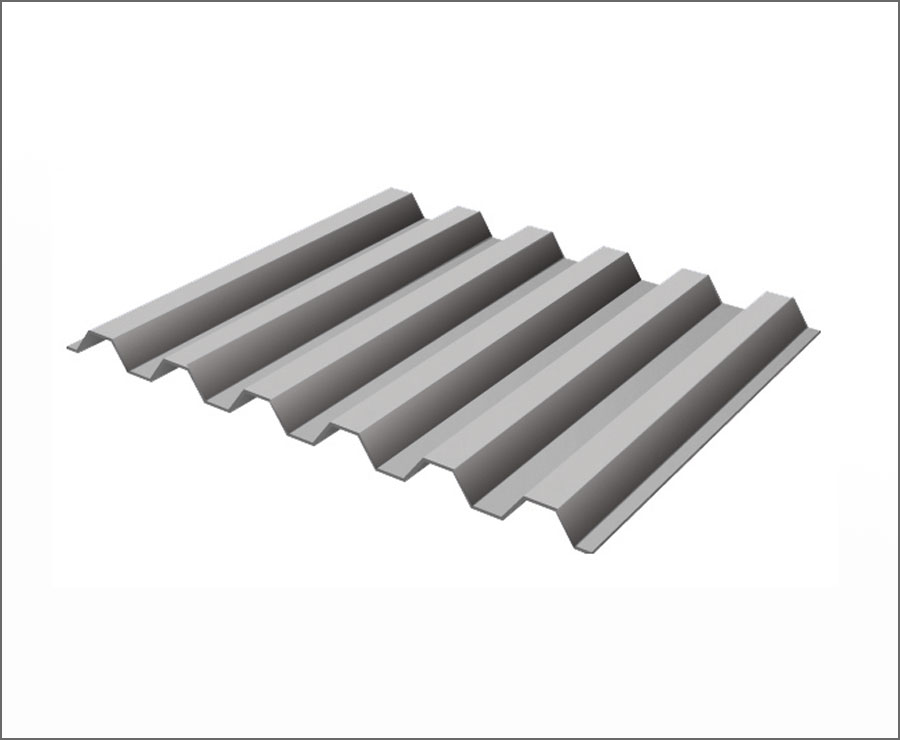

Durashine Accessories
